Food Grade Mobile Box Type CE Certified Nitrogen Gas Making Machine

Product Details:

Place of Origin: China
Brand Name: KERONG GAS
Certification: ISO9001, CE, ASME
Model Number: KRN

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 4 weeks
Payment Terms: T/T,Western Union
Supply Ability: 1000pcs per year
Get Best Price Contact Now

Detail Information
Name: Nitrogen Gas Making Machine Purity: 90%~99.999%
Dew Point: -45℃ Or More Material: Stainless Steel Or Carbon Steel
Capacity: 2Nm3/hr~110Nm3/hr Pressure: Adjustable
Highlight:

food grade nitrogen gas machine

,

mobile box nitrogen generator

,

CE certified nitrogen making machine

Product Description

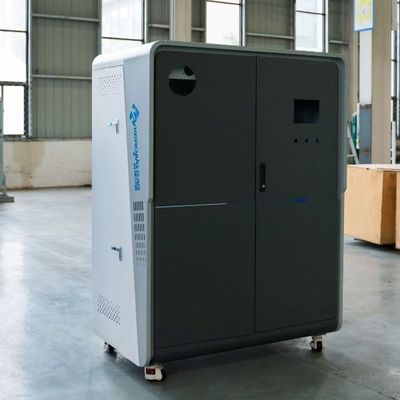

Food Grade Mobile Box Type CE Certified Nitrogen Gas Making Machine


Product description

Our Food Grade Mobile Box Type CE Certified Nitrogen Gas Making Machine is designed to provide safe, high-purity nitrogen (up to 99.99%) for food packaging and preservation applications. Built with food-grade materials and compliant with strict hygiene standards, it ensures contamination-free gas production. The mobile box-type design with wheels allows easy movement and flexible installation in production areas. Utilizing advanced Pressure Swing Adsorption (PSA) technology, the system delivers continuous, on-site nitrogen supply with stable purity and pressure. Fully automatic, energy-efficient, and CE certified, this machine guarantees safe operation, low maintenance, and reduced operating costs, making it an ideal solution for modern food processing and packaging facilities.


Food Grade Mobile Box Type CE Certified Nitrogen Gas Making Machine 0



Technical Parameters

Model Capacity (Nm3/hr) N2 purity(%) Air consumptin (m3/min) Air inlet requirements Electricity consumption Inlet / outlet pipe Diemension (mm) N.Weight
KRNAB-1 11.4 95 0.32 Air Inlet Temperature Range: 0℃~40℃;
Air inlet pressure range: 7~12barG;
Air inlet dew point: <+5°C;
Particles: <5 micron;
Oil: <3 mg/m3		 0.2KW/220V/230V/50Hz/60Hz G1/2, G1/2 700*700*2000 210
8.1 99
6.8 99.5
5.4 99.9
4.5 99.95
3.5 99.99
2.8 99.995
2 99.999
KRNAB-2 22.8 95 0.61 0.2KW/220V/230V/50Hz/60Hz G1/2, G1/2 900*700*2000 280
16.2 99
13.5 99.5
10.8 99.9
8.9 99.95
6.9 99.99
5.7 99.995
4.3 99.999
KRNAB-3 34.2 95 0.95 0.2KW/220V/230V/50Hz/60Hz G1/2, G1/2 1100*700*2000 350
24.3 99
20.3 99.5
16.2 99.9
13.4 99.95
10.5 99.99
8.8 99.995
7.1 99.999
KRNAB-4 45.6 95 1.35 0.2KW/220V/230V/50Hz/60Hz G3/4, G1/2 1300*700*2000 450
32.4 99
27 99.5
21.6 99.9
17.7 99.95
13.8 99.99
11.7 99.995
9.6 99.999
KRNAB-5 57 95 1.69 0.2KW/220V/230V/50Hz/60Hz G3/4, G1/2 1450*700*2000 500
40.5 99
32.4 99.5
26.6 99.9
20.8 99.95
17.2 99.99
14.6 99.995
12 99.999
KRNAB-6 68.4 95 2.14 0.2KW/220V/230V/50Hz/60Hz G3/4, G1/2 1650*700*2000 600
48.6 99
40.5 99.5
32.4 99.9
26.6 99.95
20.8 99.99
17.6 99.995
14.4 99.999
KRNAB-7 79.8 95 2.55 0.2KW/220V/230V/50Hz/60Hz G3/4, G1/2 1750*700*2000 700
56.7 99
47.3 99.5
37.8 99.9
31.1 99.95
24.3 99.99
20.6 99.995
16.8 99.999
KRNAB-8 91.3 95 2.75 0.2KW/220V/230V/50Hz/60Hz G1, G1/2 2000*700*2000 780
64.8 99
54 99.5
43.2 99.9
35.6 99.95
27.9 99.99
23.6 99.995
19.2 99.999
KRNAB-9 102.7 95 3.2 0.2KW/220V/230V/50Hz/60Hz G1, G1/2 2150*700*2000 900
72.9 99
60.8 99.5
48.6 99.9
39.7 99.95
30.7 99.99
26.2 99.995
21.6 99.999
KRNAB-10 114.1 95 3.67 0.2KW/220V/230V/50Hz/60Hz G1, G1/2 2250*700*2000 1000
81 99
67.5 99.5
54 99.9
44.3 99.95
34.5 99.99
29.3 99.995
23 99.999




Featured Function

Online monitoring of oxygen purity, pressure, flow rate and dew point.
Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
Air dryer and air filters automatic drainer discharge.
Automatic warning of spare parts replacement.
Remote control / fully automatic
Molecular sieve automatic compaction
Pneumatic valve switching by programmable controller automatic control

The IPC, DCS, the specific configuration of other specific programs



Factory Certificates

Food Grade Mobile Box Type CE Certified Nitrogen Gas Making Machine 1Food Grade Mobile Box Type CE Certified Nitrogen Gas Making Machine 2Food Grade Mobile Box Type CE Certified Nitrogen Gas Making Machine 3



FAQ

Q: Are you a factory or a trading company?

A:We are a factory over 20 years industrial experience.


Q: Do you offer OEM service?
A: Yes, we can customize it as your request.


Q: What is your lead time?
A: About 60~90 days after receiving deposit.


Q: What certificates do you have?
A: We have ASME, CE, ISO9001-2015, ISO13485 for medical oxygen generator. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc


Q: What about the warranty?
A: Beyond warranty period(For 12-Months against any manufacturing defect from the date equipment acceptance after commissioning or 18-months from the time of the delivery whichever comes first),supplier will provide spare parts, accessories, easily damaged parts via preferential price.


Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.



Q:Which port is near to you?
A: Qingdao port or Tianjin port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.


Q:Could you offer Origin Certification.
A: we can do as your request.
