Low Emission Onsite Nitrogen Air Separation Unit For Tungsten Powder Furnace
Product Details:
| Place of Origin: | China |
| Brand Name: | KERONG GAS |
| Certification: | ISO9001, CE, ASME |
| Model Number: | KRN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 8 weeks |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs per year |
|
Detail Information |
|||
| Name: | Nitrogen Air Separation Unit | Purity: | 90%~99.9999% |
|---|---|---|---|
| Dew Point: | -45℃ Or More | Material: | Stainless Steel Or Carbon Steel |
| Capacity: | 5Nm3/hr~5500Nm3/hr | Pressure: | Adjustable |
| Highlight: | PSA nitrogen generator for tungsten furnace,low emission nitrogen separation unit,onsite nitrogen gas generator |
||
Product Description
| Attribute | Value |
|---|---|
| Name | Nitrogen Air Separation Unit |
| Purity | 90%~99.9999% |
| Dew point | -45℃ or more |
| Material | Stainless steel or carbon steel |
| Capacity | 5Nm3/hr~5500Nm3/hr |
| Pressure | Adjustable |

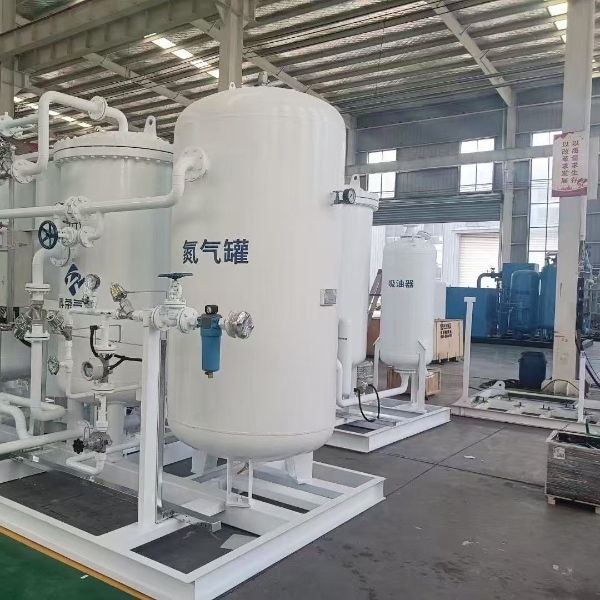

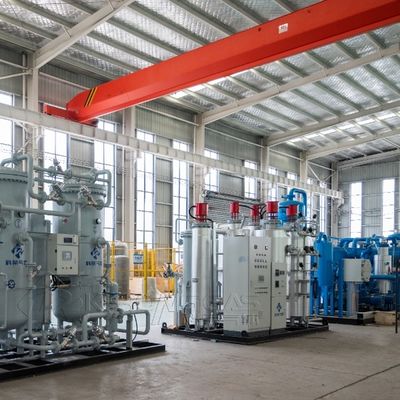

Our Low Emission Onsite Nitrogen Air Separation Unit is designed to provide high-purity nitrogen (up to 99.9995%) directly to tungsten powder furnaces, ensuring oxidation-free processing and consistent material quality. Utilizing advanced Pressure Swing Adsorption (PSA) or membrane separation technology, it separates nitrogen from compressed air efficiently while minimizing energy consumption and emissions. The compact, skid-mounted system integrates air compression, drying, filtration, and control units for easy installation, automatic operation, and low maintenance. Engineered for industrial reliability and environmental compliance, it delivers a continuous, cost-effective, and eco-friendly nitrogen supply, supporting safe and efficient tungsten powder production processes.
| Model | Nitrogen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) | Net dimensions(mm) |
|---|---|---|---|---|
| KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
| 6 | 99.5 | 0.32 | ||
| KRN219 | 15 | 99 | 0.7 | 1200*600*1900 |
- Online monitoring of oxygen purity, pressure, flow rate and dew point.
- Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
- Air dryer and air filters automatic drainer discharge.
- Automatic warning of spare parts replacement.
- Remote control / fully automatic
- Molecular sieve automatic compaction
- Pneumatic valve switching by programmable controller automatic control
- The IPC, DCS, the specific configuration of other specific programs
