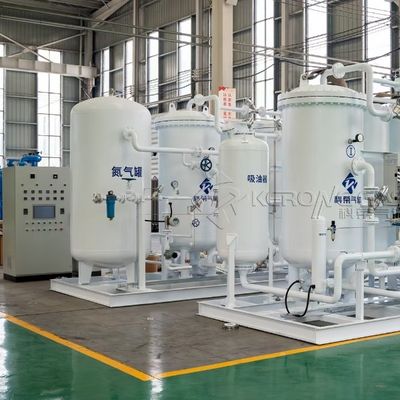

Automatic Safety Shutdown Explosive Proof Nitrogen Air Separation Unit
Product Details:
| Place of Origin: | China |
| Brand Name: | KERONG GAS |
| Certification: | ISO9001, CE, ASME |
| Model Number: | KRN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 8 weeks |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs per year |
|
Detail Information |
|||
| Name: | Nitrogen Air Separation Unit | Purity: | 90%~99.9999% |
|---|---|---|---|
| Dew Point: | -45℃ Or More | Material: | Stainless Steel Or Carbon Steel |
| Capacity: | 5Nm3/hr~5500Nm3/hr | Pressure: | Adjustable |
| Highlight: | explosion proof nitrogen generator,PSA nitrogen air separation unit,automatic shutdown nitrogen generator |
||
Product Description
| Attribute | Value |
|---|---|
| Name | Nitrogen Air Separation Unit |
| Purity | 90%~99.9999% |
| Dew point | -45℃ or more |
| Material | Stainless steel or carbon steel |
| Capacity | 5Nm3/hr~5500Nm3/hr |
| Pressure | Adjustable |
Our Automatic Safety Shutdown Explosive Proof Nitrogen Air Separation Unit is engineered for hazardous environments requiring high-purity nitrogen (up to 99.99%) with maximum safety. Utilizing advanced Pressure Swing Adsorption (PSA) or membrane technology, it separates nitrogen from compressed air, providing continuous on-site supply for chemical, petrochemical, or industrial applications. The system features explosion-proof construction and an automatic safety shutdown mechanism, protecting personnel and equipment in case of abnormal conditions. Fully automated, energy-efficient, and low-maintenance, it integrates air compression, drying, filtration, and control units in a robust design. This unit ensures reliable, safe, and compliant nitrogen generation in high-risk environments.
| Model | Nitrogen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) | Net dimensions(mm) |
|---|---|---|---|---|
| KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
| 6 | 99.5 | 0.32 | ||
| KRN219 | 15 | 99 | 0.7 | 1200*600*1900 |
- Online monitoring of oxygen purity, pressure, flow rate and dew point.
- Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
- Air dryer and air filters automatic drainer discharge.
- Automatic warning of spare parts replacement.
- Remote control / fully automatic
- Molecular sieve automatic compaction
- Pneumatic valve switching by programmable controller automatic control
- The IPC, DCS, the specific configuration of other specific programs
