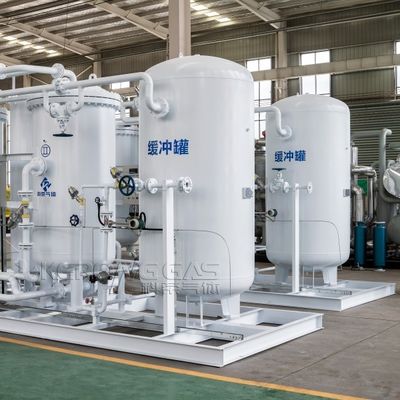

Quick Production Nitrogen Generator For Laser Cutting With 20Mpa Filling Station
Product Details:
| Place of Origin: | China |
| Brand Name: | KERONG GAS |
| Certification: | ISO9001, CE, ASME |
| Model Number: | KRN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 8 weeks |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs per year |
|
Detail Information |
|||
| Name: | Nitrogen Generator For Laser Cutting | Purity: | 90%~99.9999% |
|---|---|---|---|
| Dew Point: | -45℃ Or More | Material: | Stainless Steel Or Carbon Steel |
| Capacity: | 5Nm3/hr~5500Nm3/hr | Pressure: | Adjustable |
| Highlight: | PSA nitrogen generator for laser cutting,20Mpa nitrogen filling station,quick production nitrogen gas generator |
||
Product Description
| Attribute | Value |
|---|---|
| Name | Nitrogen Generator For Laser Cutting |
| Purity | 90%~99.9999% |
| Dew point | -45℃ or more |
| Material | Stainless steel or carbon steel |
| Capacity | 5Nm3/hr~5500Nm3/hr |
| Pressure | Adjustable |
Our Quick Production Nitrogen Generator for Laser Cutting with 20MPa Filling Station is engineered for high-demand industrial applications, delivering ultra-high purity nitrogen (up to 99.99%) rapidly and efficiently. Utilizing advanced Pressure Swing Adsorption (PSA) or membrane separation technology, it provides continuous on-site nitrogen for oxidation-free laser cutting operations. The integrated 20MPa high-pressure filling station allows rapid refilling of cylinders for flexible usage across multiple production lines. Designed for automatic operation, energy efficiency, and minimal maintenance, this system eliminates reliance on external nitrogen deliveries, ensuring uninterrupted production. Its robust, compact design guarantees reliable, high-capacity nitrogen supply for demanding fabrication workshops.
| Model | Nitrogen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) | Net dimensions(mm) |
|---|---|---|---|---|
| KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
| 6 | 99.5 | 0.32 | ||
| KRN219 | 15 | 99 | 0.7 | 1200*600*1900 |
- Online monitoring of oxygen purity, pressure, flow rate and dew point.
- Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
- Air dryer and air filters automatic drainer discharge.
- Automatic warning of spare parts replacement.
- Remote control / fully automatic
- Molecular sieve automatic compaction
- Pneumatic valve switching by programmable controller automatic control
- The IPC, DCS, the specific configuration of other specific programs
