Nitrogen Generator For Laser Cutting With 200bar Filling Station
Product Details:
| Place of Origin: | China |
| Brand Name: | KERONG GAS |
| Certification: | ISO9001, CE, ASME |
| Model Number: | KRN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 8 weeks |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs per year |
|
Detail Information |
|||
| Name: | Nitrogen Generator For Laser Cutting | Purity: | 90%~99.9999% |
|---|---|---|---|
| Dew Point: | -45℃ Or More | Material: | Stainless Steel Or Carbon Steel |
| Capacity: | 5Nm3/hr~5500Nm3/hr | Pressure: | Adjustable |
| Highlight: | PSA nitrogen generator for laser cutting,200bar nitrogen filling station,industrial nitrogen gas generator |
||
Product Description
| Attribute | Value |
|---|---|
| Name | Nitrogen Generator For Laser Cutting |
| Purity | 90%~99.9999% |
| Dew point | -45℃ or more |
| Material | Stainless steel or carbon steel |
| Capacity | 5Nm3/hr~5500Nm3/hr |
| Pressure | Adjustable |

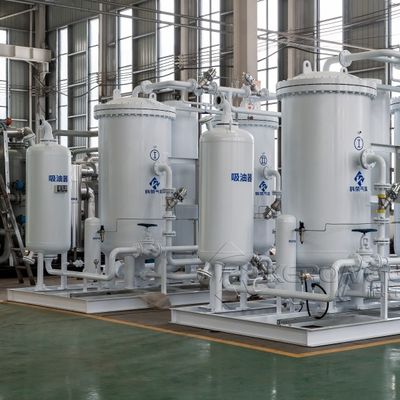

Our Nitrogen Generator for Laser Cutting with 200bar Filling Station delivers ultra-high purity nitrogen (up to 99.99%) directly on-site for precision cutting applications. Utilizing advanced Pressure Swing Adsorption (PSA) or membrane technology, it ensures continuous nitrogen supply for oxidation-free laser cutting, while the integrated 200bar filling station enables high-pressure cylinder refilling for flexible use across production lines. Designed for automatic operation, energy efficiency, and minimal maintenance, the system eliminates dependency on bulk nitrogen deliveries. Compact and robust, it provides a reliable, cost-effective solution for fabrication workshops and industrial cutting facilities requiring both direct laser cutting supply and high-pressure cylinder storage capabilities.
| Model | Nitrogen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) | Net dimensions(mm) |
|---|---|---|---|---|
| KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
| 6 | 99.5 | 0.32 | ||
| KRN219 | 15 | 99 | 0.7 | 1200*600*1900 |
- Online monitoring of oxygen purity, pressure, flow rate and dew point.
- Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
- Air dryer and air filters automatic drainer discharge.
- Automatic warning of spare parts replacement.
- Remote control / fully automatic
- Molecular sieve automatic compaction
- Pneumatic valve switching by programmable controller automatic control
- The IPC, DCS, the specific configuration of other specific programs
