Aluminum Alloy No Installation Required Oxygen Gas Generation System
Product Details:
| Place of Origin: | China |
| Brand Name: | KERONG GAS |
| Certification: | ISO9001, CE, ASME |
| Model Number: | KRN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 4 weeks |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs per year |
|
Detail Information |
|||
| Name: | Oxygen Gas Generation System | Purity: | 90%~95% |
|---|---|---|---|
| Dew Point: | -45℃ Or More | Material: | Stainless Steel Or Carbon Steel |
| Capacity: | 2.5Nm3/hr~60Nm3/hr | Pressure: | Adjustable |
| Highlight: | aluminum alloy oxygen generation system,no installation oxygen generator,modular oxygen gas system |
||
Product Description
Aluminum Alloy No Installation Required Oxygen Gas Generation System
Product description

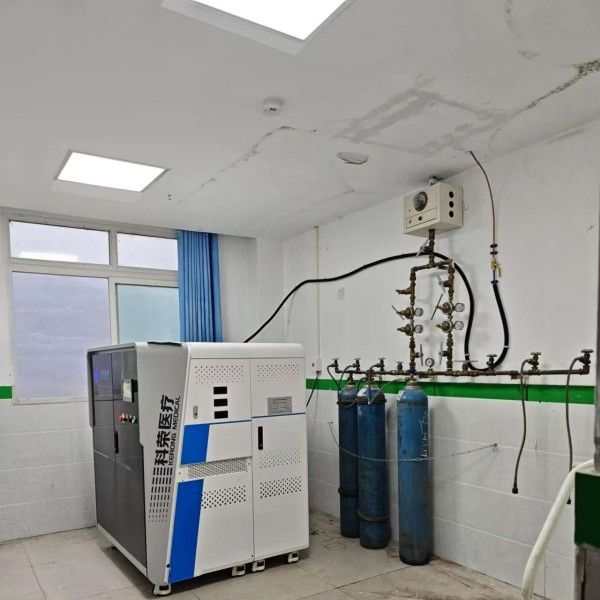

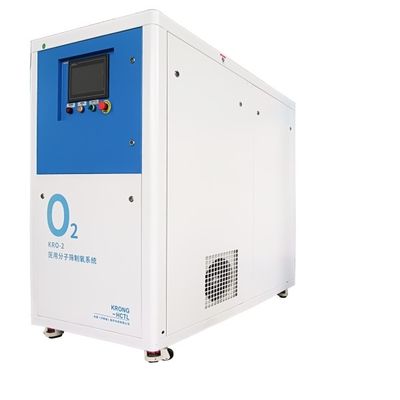

Our Aluminum Alloy No Installation Required Oxygen Gas Generation System is a durable, lightweight, and ready-to-use solution for on-site oxygen supply. Built with a robust aluminum alloy structure, it offers superior corrosion resistance and long service life while ensuring portability and strength. Utilizing advanced Pressure Swing Adsorption (PSA) technology, it delivers oxygen purity up to 95%, ideal for medical, pharmaceutical, and industrial use. With a plug-and-play design, the system requires no complex installation—simply connect and start generating oxygen. Compact, fully automatic, and low maintenance, it provides a reliable, cost-effective alternative to traditional oxygen cylinders or bulk deliveries.
Technical Parameters
| Model |
Capacity (Nm3/hr) |
Purity(%) |
Air consumption (m3/min) |
Inlet air requirements | Oxygen specs | Electricity | Inlet/ outlet pipe |
Diemensions (mm) |
N.Weight |
| KROB-1 | 2.7 | 90 | 0.65 | Air Inlet Temperature Range: 0℃~40℃; Air inlet pressure range: 4~7barG; Air inlet dew point: <+5°C; Particles: <5 micron; Oil: <3 mg/m3 |
Outlet pressure:0.4MPa-0.65MPa Water content:≤0.07g/m³ CO2:≤10PPm(V/V) CO:≤1PPm(V/V) Dust content:≤0.2mg/m³ Noise level:≤78dB(A) |
0.2KW/220V/230V/50Hz/60Hz | DN15/ DN15 | 480*730*1800 | 310 |
| 2.6 | 93 | ||||||||
| 2.5 | 95 | ||||||||
| KROB-2 | 5.4 | 90 | 1.3 | 0.2KW/220V/230V/50Hz/60Hz | DN20/ DN15 | 480*950*1800 | 450 | ||
| 5.2 | 93 | ||||||||
| 5 | 95 | ||||||||
| KROB-3 | 8.1 | 90 | 1.95 | 0.2KW/220V/230V/50Hz/60Hz | DN20/ DN15 | 480*1200*1800 | 600 | ||
| 7.8 | 93 | ||||||||
| 7.5 | 95 | ||||||||
| KROB-4 | 10.8 | 90 | 2.5 | 0.2KW/220V/230V/50Hz/60Hz | DN25/ DN15 | 480*1400*1800 | 750 | ||
| 10.3 | 93 | ||||||||
| 10 | 95 | ||||||||
| KROB-5 | 13.5 | 90 | 3.2 | 0.2KW/220V/230V/50Hz/60Hz | DN25/ DN15 | 480*1700*1800 | 900 | ||
| 12.8 | 93 | ||||||||
| 12.5 | 95 | ||||||||
| KROB-6 | 16.2 | 90 | 3.9 | 0.2KW/220V/230V/50Hz/60Hz | DN40/ DN15 | 480*1900*1800 | 1050 | ||
| 15.1 | 93 | ||||||||
| 15 | 95 | ||||||||
| KROAB-7 | 17.7 | 90 | 4.3 | 0.2KW/220V/230V/50Hz/60Hz | DN40/ DN15 | 480*2100*1800 | 1200 | ||
| 17.5 | 93 | ||||||||
| 16.9 | 95 | ||||||||
| KROAB-8 | 21.6 | 90 | 5 | 0.2KW/220V/230V/50Hz/60Hz | DN40/ DN15 | 480*2300*1800 | 1400 | ||
| 20.3 | 93 | ||||||||
| 20 | 95 |
Factory Certificates
FAQ
Q: Are you a factory or a trading company?
A:We are a factory over 20 years industrial experience.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 60~90 days after receiving deposit.
Q: What certificates do you have?
A: We have ASME, CE, ISO9001-2015, ISO13485 for medical oxygen generator. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: Beyond warranty period(For 12-Months against any manufacturing defect from the date equipment acceptance after commissioning or 18-months from the time of the delivery whichever comes first),supplier will provide spare parts, accessories, easily damaged parts via preferential price.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:Which port is near to you?
A: Qingdao port or Tianjin port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: we can do as your request.
