Oxygen Monitor Box Type PSA Based Oxygen Plant With Sterilizer Filter
Product Details:
| Place of Origin: | China |
| Brand Name: | KERONG GAS |
| Certification: | ISO9001, CE, ASME |
| Model Number: | KRN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 4 weeks |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs per year |
|
Detail Information |
|||
| Name: | Box Type PSA Based Oxygen Plant | Purity: | 90%~95% |
|---|---|---|---|
| Dew Point: | -45℃ Or More | Material: | Stainless Steel Or Carbon Steel |
| Capacity: | 2.5Nm3/hr~60Nm3/hr | Pressure: | Adjustable |
| Highlight: | PSA Based Oxygen Monitor,Sterilizer Filter Oxygen Monitor,Box Type Oxygen Monitor |
||
Product Description

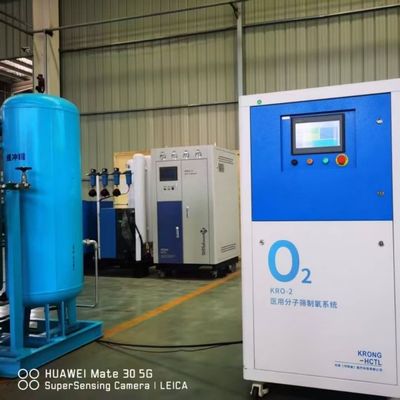

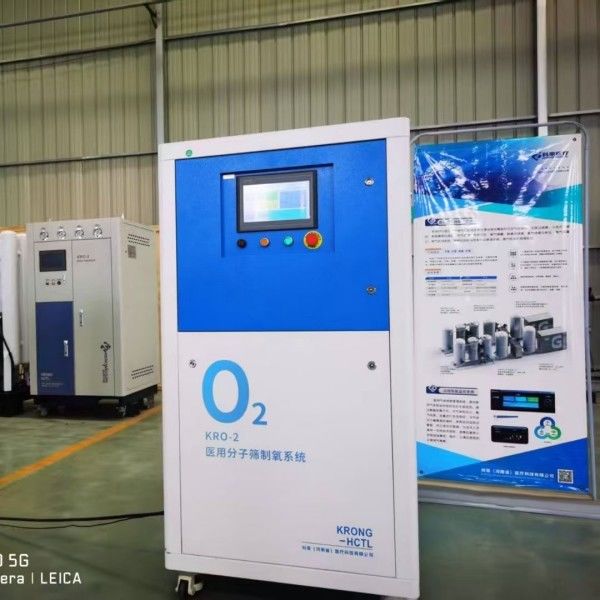

Oxygen Monitor Box Type PSA Based Oxygen Plant With Sterilizer Filter
Product description
Our Oxygen Monitor Box Type PSA-Based Oxygen Plant with Sterilizer Filter is a compact, fully integrated solution designed for medical and pharmaceutical applications. Using advanced Pressure Swing Adsorption (PSA) technology, it produces high-purity oxygen (up to 95%) on-site, eliminating the need for oxygen cylinders. The built-in oxygen monitoring system ensures real-time purity control, while the sterilizer filter guarantees bacteria-free, medical-grade oxygen output. Housed in a durable box-type enclosure, this system features automated operation, low maintenance, and quiet performance. Ideal for hospitals, clinics, and cleanroom use, it offers a safe, hygienic, and reliable oxygen supply for critical environments.
Technical Parameters
| Model |
Capacity (Nm3/hr) |
Purity(%) |
Air consumption (m3/min) |
Inlet air requirements | Oxygen specs | Electricity | Inlet/ outlet pipe |
Diemensions (mm) |
N.Weight |
| KROB-1 | 2.7 | 90 | 0.65 | Air Inlet Temperature Range: 0℃~40℃; Air inlet pressure range: 4~7barG; Air inlet dew point: <+5°C; Particles: <5 micron; Oil: <3 mg/m3 |
Outlet pressure:0.4MPa-0.65MPa Water content:≤0.07g/m³ CO2:≤10PPm(V/V) CO:≤1PPm(V/V) Dust content:≤0.2mg/m³ Noise level:≤78dB(A) |
0.2KW/220V/230V/50Hz/60Hz | DN15/ DN15 | 480*730*1800 | 310 |
| 2.6 | 93 | ||||||||
| 2.5 | 95 | ||||||||
| KROB-2 | 5.4 | 90 | 1.3 | 0.2KW/220V/230V/50Hz/60Hz | DN20/ DN15 | 480*950*1800 | 450 | ||
| 5.2 | 93 | ||||||||
| 5 | 95 | ||||||||
| KROB-3 | 8.1 | 90 | 1.95 | 0.2KW/220V/230V/50Hz/60Hz | DN20/ DN15 | 480*1200*1800 | 600 | ||
| 7.8 | 93 | ||||||||
| 7.5 | 95 | ||||||||
| KROB-4 | 10.8 | 90 | 2.5 | 0.2KW/220V/230V/50Hz/60Hz | DN25/ DN15 | 480*1400*1800 | 750 | ||
| 10.3 | 93 | ||||||||
| 10 | 95 | ||||||||
| KROB-5 | 13.5 | 90 | 3.2 | 0.2KW/220V/230V/50Hz/60Hz | DN25/ DN15 | 480*1700*1800 | 900 | ||
| 12.8 | 93 | ||||||||
| 12.5 | 95 | ||||||||
| KROB-6 | 16.2 | 90 | 3.9 | 0.2KW/220V/230V/50Hz/60Hz | DN40/ DN15 | 480*1900*1800 | 1050 | ||
| 15.1 | 93 | ||||||||
| 15 | 95 | ||||||||
| KROAB-7 | 17.7 | 90 | 4.3 | 0.2KW/220V/230V/50Hz/60Hz | DN40/ DN15 | 480*2100*1800 | 1200 | ||
| 17.5 | 93 | ||||||||
| 16.9 | 95 | ||||||||
| KROAB-8 | 21.6 | 90 | 5 | 0.2KW/220V/230V/50Hz/60Hz | DN40/ DN15 | 480*2300*1800 | 1400 | ||
| 20.3 | 93 | ||||||||
| 20 | 95 |
Factory Certificates
FAQ
Q: Are you a factory or a trading company?
A:We are a factory over 20 years industrial experience.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 60~90 days after receiving deposit.
Q: What certificates do you have?
A: We have ASME, CE, ISO9001-2015, ISO13485 for medical oxygen generator. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: Beyond warranty period(For 12-Months against any manufacturing defect from the date equipment acceptance after commissioning or 18-months from the time of the delivery whichever comes first),supplier will provide spare parts, accessories, easily damaged parts via preferential price.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:Which port is near to you?
A: Qingdao port or Tianjin port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: we can do as your request.
