High Pressure Box Type PSA Based Oxygen Plant For Hospital

High Pressure Box Type PSA Based Oxygen Plant For Hospital

Product Details:

Place of Origin: China
Brand Name: KERONG GAS
Certification: ISO9001, CE, ASME
Model Number: KRN

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 4 weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per year
Get Best Price Contact Now

Detail Information

Name: Box Type PSA Based Oxygen Plant Purity: 90%~95%
Dew Point: -45℃ Or More Material: Stainless Steel Or Carbon Steel
Capacity: 2.5Nm3/hr~60Nm3/hr Pressure: Adjustable
Highlight:

PSA Based Oxygen Plant

,

Hospital Use PSA Oxygen Plant

,

Hospital Use Oxygen Plant

Product Description

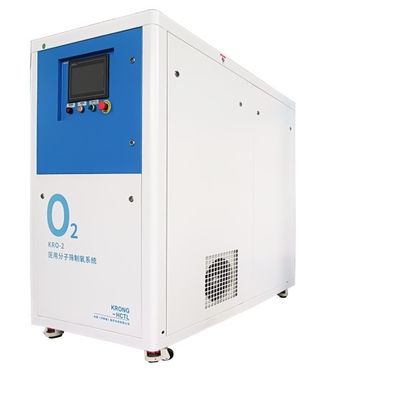

High Pressure Box Type PSA Based Oxygen Plant For Hospital Use



Product description

Our High Pressure Box Type PSA-Based Oxygen Plant for Hospital Use is designed to deliver reliable, high-purity oxygen (up to 95%) at high pressures, ensuring a continuous supply for medical applications. Utilizing Pressure Swing Adsorption (PSA) technology, this plant produces oxygen directly on-site, eliminating the need for external oxygen cylinder deliveries. The compact, box-type design integrates key components such as the compressor, dryer, filters, and control system into a single, space-saving unit. Fully automated with low maintenance, it is ideal for hospitals, ICU units, and emergency care facilities, providing a dependable, cost-effective oxygen supply while meeting strict medical standards.





High Pressure Box Type PSA Based Oxygen Plant For Hospital 0





Technical Parameters

Model

Capacity

(Nm3/hr)

Purity(%)

Air consumption

(m3/min)

Inlet air requirements Oxygen specs Electricity Inlet/ outlet pipe

Diemensions

(mm)

N.Weight
KROB-1 2.7 90 0.65 Air Inlet Temperature Range: 0℃~40℃;
Air inlet pressure range: 4~7barG;
Air inlet dew point: <+5°C;
Particles: <5 micron;
Oil: <3 mg/m3
Outlet pressure:0.4MPa-0.65MPa
Water content:≤0.07g/m³
CO2:≤10PPm(V/V)
CO:≤1PPm(V/V)
Dust content:≤0.2mg/m³
Noise level:≤78dB(A)
0.2KW/220V/230V/50Hz/60Hz DN15/ DN15 480*730*1800 310
2.6 93
2.5 95
KROB-2 5.4 90 1.3 0.2KW/220V/230V/50Hz/60Hz DN20/ DN15 480*950*1800 450
5.2 93
5 95
KROB-3 8.1 90 1.95 0.2KW/220V/230V/50Hz/60Hz DN20/ DN15 480*1200*1800 600
7.8 93
7.5 95
KROB-4 10.8 90 2.5 0.2KW/220V/230V/50Hz/60Hz DN25/ DN15 480*1400*1800 750
10.3 93
10 95
KROB-5 13.5 90 3.2 0.2KW/220V/230V/50Hz/60Hz DN25/ DN15 480*1700*1800 900
12.8 93
12.5 95
KROB-6 16.2 90 3.9 0.2KW/220V/230V/50Hz/60Hz DN40/ DN15 480*1900*1800 1050
15.1 93
15 95
KROAB-7 17.7 90 4.3 0.2KW/220V/230V/50Hz/60Hz DN40/ DN15 480*2100*1800 1200
17.5 93
16.9 95
KROAB-8 21.6 90 5 0.2KW/220V/230V/50Hz/60Hz DN40/ DN15 480*2300*1800 1400
20.3 93
20 95





Factory Certificates

High Pressure Box Type PSA Based Oxygen Plant For Hospital 1High Pressure Box Type PSA Based Oxygen Plant For Hospital 2High Pressure Box Type PSA Based Oxygen Plant For Hospital 3





FAQ

Q: Are you a factory or a trading company?

A:We are a factory over 20 years industrial experience.


Q: Do you offer OEM service?
A: Yes, we can customize it as your request.



Q: What is your lead time?
A: About 60~90 days after receiving deposit.



Q: What certificates do you have?
A: We have ASME, CE, ISO9001-2015, ISO13485 for medical oxygen generator. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc



Q: What about the warranty?
A: Beyond warranty period(For 12-Months against any manufacturing defect from the date equipment acceptance after commissioning or 18-months from the time of the delivery whichever comes first),supplier will provide spare parts, accessories, easily damaged parts via preferential price.



Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.





Q:Which port is near to you?
A: Qingdao port or Tianjin port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.



Q:Could you offer Origin Certification.
A: we can do as your request.
