Auto Onsite High Purity PSA Nitrogen Gas Generators For Annealing Protection
Product Details:
Place of Origin: | China |
Brand Name: | KERONG GAS |
Certification: | ISO9001, CE, ASME |
Model Number: | KRN |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pc |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden box |
Delivery Time: | 8 weeks |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 1000pcs per year |
Detail Information |
|||
Name: | Nitrogen Gas Generation | Purity: | 90%~99.9997% |
---|---|---|---|
Dew Point: | -45℃ Or More | Material: | Stainless Steel Or Carbon Steel |
Capacity: | 5Nm3/hr~5500Nm3/hr | Pressure: | Adjustable |
Highlight: | Onsite PSA Nitrogen Gas Generators,Annealing Protection PSA Nitrogen Generators,Annealing Protection onsite nitrogen generator |
Product Description

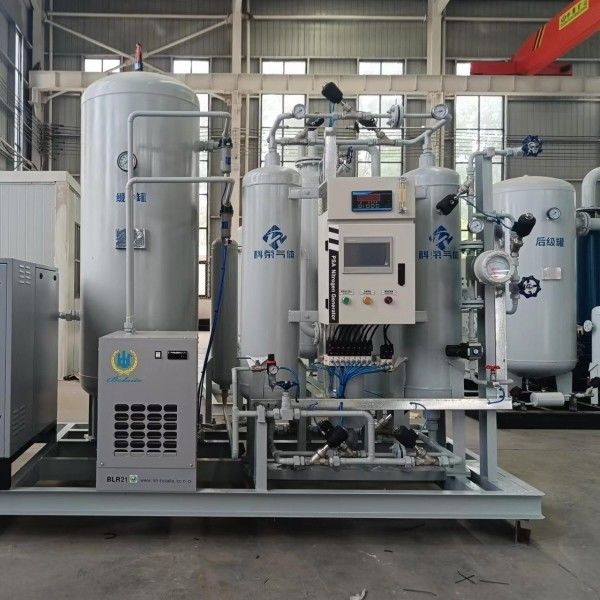

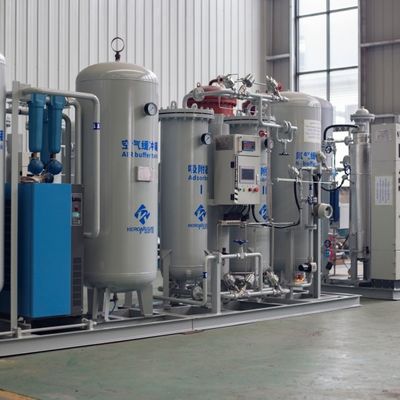

Auto Onsite High Purity Nitrogen Gas Generation For Annealing Protection
Product description
Auto Onsite High Purity Nitrogen Gas Generation For Annealing Protection is an advanced system designed to automatically generate high purity nitrogen gas for the purpose of protecting annealing processes. This system operates onsite, providing a convenient and efficient solution for annealing applications. With its advanced automation features, it ensures seamless nitrogen production without the need for manual intervention. The generated high purity nitrogen gas safeguards the annealing process by preventing oxidation and maintaining a controlled atmosphere. This system is specifically designed to meet the stringent requirements of annealing applications, ensuring optimal results and product quality. With its automatic operation and focus on high purity nitrogen generation, it offers a reliable and effective solution for enhancing the annealing process and protecting valuable materials.
Technical Parameters
Capacity: 5-5500Nm³/h
Dew point :-45 ℃ or more
Purity :90%~99.9997%
Model | Nitrogen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) | Net dimensions(mm) |
KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
6 | 99.5 | 0.32 | ||
5 | 99.9 | 0.32 | ||
4 | 99.95 | 0.3 | ||
3 | 99.99 | 0.25 | ||
2 | 99.999 | 0.22 | ||
KRN219 | 15 | 99 | 0.7 | 1200*600*1900 |
12 | 99.5 | 0.64 | ||
10 | 99.9 | 0.64 | ||
8 | 99.95 | 0.6 | ||
5 | 99.99 | 0.42 | ||
4 | 99.999 | 0.43 | ||
KRN300.01 | 25 | 99 | 1.17 | 1600*800*1700 |
22 | 99.5 | 1.17 | ||
20 | 99.9 | 1.25 | ||
16 | 99.95 | 1.2 | ||
10 | 99.99 | 0.83 | ||
6 | 99.999 | 0.65 | ||
KRN300.02 | 40 | 99 | 1.87 | 1600*800*2200 |
33 | 99.5 | 1.76 | ||
25 | 99.9 | 1.58 | ||
20 | 99.95 | 1.5 | ||
15 | 99.99 | 1.25 | ||
10 | 99.999 | 1.09 | ||
KRN400.01 | 50 | 99 | 2.4 | 2000*900*1800 |
45 | 99.5 | 2.4 | ||
40 | 99.9 | 2.4 | ||
30 | 99.95 | 2.25 | ||
20 | 99.99 | 1.67 | ||
15 | 99.999 | 1.63 | ||
KRN400.02 | 80 | 99 | 3.73 | 2000*900*2300 |
70 | 99.5 | 3.73 | ||
60 | 99.9 | 3.8 | ||
50 | 99.95 | 3.75 | ||
30 | 99.99 | 2.5 | ||
20 | 99.999 | 2.17 | ||
KRN500.01 | 100 | 99 | 4.67 | 2400*1000*2250 |
90 | 99.5 | 4.8 | ||
70 | 99.9 | 4.44 | ||
55 | 99.95 | 4.13 | ||
40 | 99.99 | 3.33 | ||
30 | 99.999 | 3.25 | ||
KRN500.02 | 132 | 99 | 6.2 | 2400*1000*2400 |
110 | 99.5 | 5.9 | ||
90 | 99.9 | 5.7 | ||
70 | 99.95 | 5.3 | ||
50 | 99.99 | 4.2 | ||
40 | 99.999 | 4.3 | ||
KRN600.01 | 150 | 99 | 7 | 3100*1200*2400 |
130 | 99.5 | 6.9 | ||
110 | 99.9 | 6.9 | ||
90 | 99.95 | 6.8 | ||
60 | 99.99 | 5 | ||
50 | 99.999 | 5.4 | ||
KRN600.02 | 180 | 99 | 8.4 | 3100*1200*2400 |
150 | 99.5 | 8 | ||
130 | 99.9 | 8.2 | ||
110 | 99.95 | 8.2 | ||
80 | 99.99 | 6.7 | ||
60 | 99.999 | 6.5 | ||
KRN700.01 | 250 | 99 | 11.7 | 3200*1400*2650 |
220 | 99.5 | 11.7 | ||
190 | 99.9 | 12 | ||
160 | 99.95 | 12 | ||
100 | 99.99 | 8.33 | ||
80 | 99.999 | 8.67 | ||
KRN700.02 | 300 | 99 | 14 | 3200*1400*2800 |
260 | 99.5 | 13.8 | ||
220 | 99.9 | 13.9 | ||
180 | 99.95 | 13.5 | ||
120 | 99.99 | 10 | ||
100 | 99.999 | 10.8 | ||
KRN800.01 | 350 | 99 | 16.33 | 3300*1600*2650 |
300 | 99.5 | 16 | ||
250 | 99.9 | 15.8 | ||
210 | 99.95 | 15.8 | ||
150 | 99.99 | 12.5 | ||
120 | 99.999 | 13 | ||
KRN800.02 | 400 | 99 | 18.6 | 3300*1600*3000 |
360 | 99.5 | 19.2 | ||
300 | 99.9 | 19 | ||
250 | 99.95 | 18.75 | ||
180 | 99.99 | 15 | ||
140 | 99.999 | 15.2 | ||
KRN900 | 500 | 99 | 23.3 | 4600*1900*3050 |
400 | 99.5 | 21.3 | ||
360 | 99.9 | 22.8 | ||
300 | 99.95 | 22.5 | ||
200 | 99.99 | 16.67 | ||
160 | 99.999 | 17.33 | ||
WN1000.01 | 600 | 99 | 28 | 4600*2000*3050 |
500 | 99.5 | 26.7 | ||
420 | 99.9 | 26.6 | ||
350 | 99.95 | 26.25 | ||
250 | 99.99 | 20.83 | ||
200 | 99.999 | 21.7 | ||
KRN1000.02 | 720 | 99 | 33.6 | 4600*2000*3350 |
600 | 99.5 | 32 | ||
500 | 99.9 | 31.6 | ||
420 | 99.95 | 31.5 | ||
300 | 99.99 | 25 | ||
250 | 99.999 | 27 | ||
KRN1100 | 880 | 99 | 41 | 4800*2200*3350 |
720 | 99.5 | 38.4 | ||
600 | 99.9 | 38 | ||
500 | 99.95 | 37.5 | ||
350 | 99.99 | 29.2 | ||
300 | 99.999 | 32.5 | ||
KRN1200 | 1000 | 99 | 50 | 5000*2200*3460 |
860 | 99.5 | 45.8 | ||
720 | 99.9 | 45.6 | ||
600 | 99.95 | 45 | ||
400 | 99.99 | 40 | ||
350 | 99.999 | 43.8 | ||
KRN1300 | 1200 | 99 | 56 | 5200*2200*3650 |
1000 | 99.5 | 53.3 | ||
860 | 99.9 | 54.5 | ||
660 | 99.95 | 49.5 | ||
450 | 99.99 | 37.5 | ||
400 | 99.999 | 43.3 | ||
KRN1400 | 1400 | 99 | 65 | 5400*2200*3750 |
1200 | 99.5 | 64 | ||
1000 | 99.9 | 63.3 | ||
800 | 99.95 | 60 | ||
500 | 99.99 | 41.7 | ||
450 | 99.999 | 48.75 | ||
KRN1500.01 | 1500 | 99 | 70 | 5600*2200*3850 |
1300 | 99.5 | 69 | ||
1100 | 99.9 | 69 | ||
900 | 99.95 | 67.5 | ||
600 | 99.99 | 50 | ||
500 | 99.999 | 54 | ||
KRN1500.02 | 2000 | 99 | 93.3 | 5600*2200*4500 |
1700 | 99.5 | 90 | ||
1400 | 99.9 | 88 | ||
1100 | 99.95 | 82.5 | ||
700 | 99.99 | 58.3 | ||
550 | 99.999 | 59.6 |
Featured Function
Online monitoring of oxygen purity, pressure, flow rate and dew point.
Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
Air dryer and air filters automatic drainer discharge.
Automatic warning of spare parts replacement.
Remote control / fully automatic
Molecular sieve automatic compaction
Pneumatic valve switching by programmable controller automatic control
The IPC, DCS, the specific configuration of other specific programs
