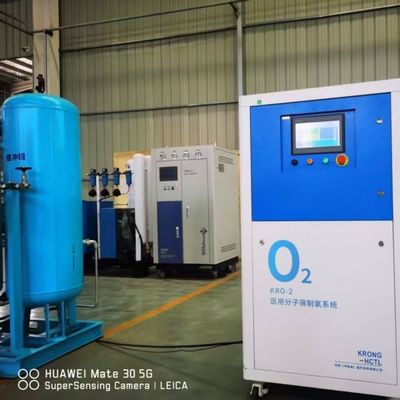

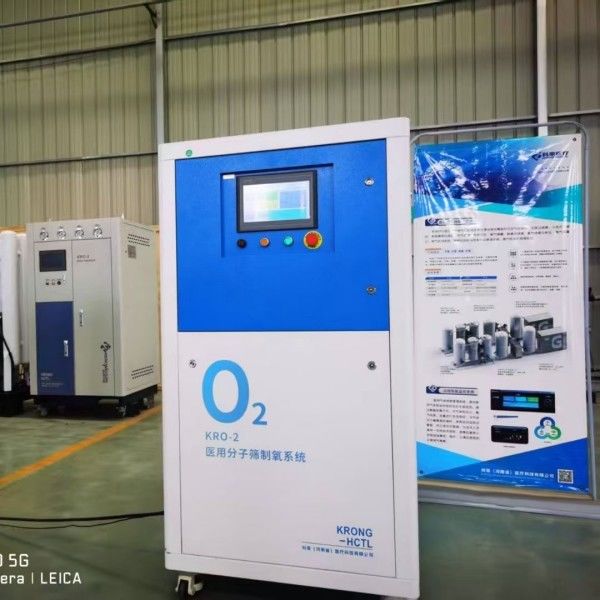

Mini Oxygen Gas Generators With CE Grade Without Pressure Vessel
Product Details:
| Place of Origin: | China |
| Brand Name: | KERONG GAS |
| Certification: | ISO9001, CE, ASME |
| Model Number: | KRN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 4 weeks |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs per year |
|
Detail Information |
|||
| Name: | Modular Oxygen Gas Generators | Purity: | 90%~95% |
|---|---|---|---|
| Dew Point: | -45℃ Or More | Material: | Stainless Steel Or Carbon Steel |
| Capacity: | 2.5Nm3/hr~60Nm3/hr | Pressure: | Adjustable |
| Highlight: | Oxygen Gas Generators Without Pressure Vessel,Stainless Steel Oxygen Gas Generators,Mini Oxygen Gas Generators |
||
Product Description
Mini Oxygen Gas Generators With CE Grade Without Pressure Vessel
Product description
Our Mini Oxygen Gas Generators with CE Grade Without Pressure Vessel are compact, efficient, and compliant with European safety standards, making them ideal for medical and small-scale industrial applications. These generators utilize advanced PSA technology to produce high-purity oxygen (up to 95%) directly from ambient air, ensuring continuous and reliable supply without the need for bulky pressure vessels. The streamlined, space-saving design allows easy installation and operation in limited spaces such as clinics, ambulances, and mobile units. With low maintenance requirements, quiet performance, and CE certification, they offer a safe, economical, and sustainable oxygen solution for critical and routine use.
Technical Parameters
| Model |
Capacity (Nm3/hr) |
Purity(%) |
Air consumption (m3/min) |
Inlet air requirements | Oxygen specs | Electricity | Inlet/ outlet pipe |
Diemensions (mm) |
N.Weight |
| KROB-1 | 2.7 | 90 | 0.65 | Air Inlet Temperature Range: 0℃~40℃; Air inlet pressure range: 4~7barG; Air inlet dew point: <+5°C; Particles: <5 micron; Oil: <3 mg/m3 |
Outlet pressure:0.4MPa-0.65MPa Water content:≤0.07g/m³ CO2:≤10PPm(V/V) CO:≤1PPm(V/V) Dust content:≤0.2mg/m³ Noise level:≤78dB(A) |
0.2KW/220V/230V/50Hz/60Hz | DN15/ DN15 | 480*730*1800 | 310 |
| 2.6 | 93 | ||||||||
| 2.5 | 95 | ||||||||
| KROB-2 | 5.4 | 90 | 1.3 | 0.2KW/220V/230V/50Hz/60Hz | DN20/ DN15 | 480*950*1800 | 450 | ||
| 5.2 | 93 | ||||||||
| 5 | 95 | ||||||||
| KROB-3 | 8.1 | 90 | 1.95 | 0.2KW/220V/230V/50Hz/60Hz | DN20/ DN15 | 480*1200*1800 | 600 | ||
| 7.8 | 93 | ||||||||
| 7.5 | 95 | ||||||||
| KROB-4 | 10.8 | 90 | 2.5 | 0.2KW/220V/230V/50Hz/60Hz | DN25/ DN15 | 480*1400*1800 | 750 | ||
| 10.3 | 93 | ||||||||
| 10 | 95 | ||||||||
| KROB-5 | 13.5 | 90 | 3.2 | 0.2KW/220V/230V/50Hz/60Hz | DN25/ DN15 | 480*1700*1800 | 900 | ||
| 12.8 | 93 | ||||||||
| 12.5 | 95 | ||||||||
| KROB-6 | 16.2 | 90 | 3.9 | 0.2KW/220V/230V/50Hz/60Hz | DN40/ DN15 | 480*1900*1800 | 1050 | ||
| 15.1 | 93 | ||||||||
| 15 | 95 | ||||||||
| KROAB-7 | 17.7 | 90 | 4.3 | 0.2KW/220V/230V/50Hz/60Hz | DN40/ DN15 | 480*2100*1800 | 1200 | ||
| 17.5 | 93 | ||||||||
| 16.9 | 95 | ||||||||
| KROAB-8 | 21.6 | 90 | 5 | 0.2KW/220V/230V/50Hz/60Hz | DN40/ DN15 | 480*2300*1800 | 1400 | ||
| 20.3 | 93 | ||||||||
| 20 | 95 |
Factory Certificates
FAQ
Q: Are you a factory or a trading company?
A:We are a factory over 20 years industrial experience.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 60~90 days after receiving deposit.
Q: What certificates do you have?
A: We have ASME, CE, ISO9001-2015, ISO13485 for medical oxygen generator. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: Beyond warranty period(For 12-Months against any manufacturing defect from the date equipment acceptance after commissioning or 18-months from the time of the delivery whichever comes first),supplier will provide spare parts, accessories, easily damaged parts via preferential price.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:Which port is near to you?
A: Qingdao port or Tianjin port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: we can do as your request.
