CE Certified Compressed Air Nitrogen Gas Generators For Pharmanceutical

CE Certified Compressed Air Nitrogen Gas Generators For Pharmanceutical

Product Details:

Place of Origin: China
Brand Name: KERONG GAS
Certification: ISO9001, CE, ASME
Model Number: KRN

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 4 weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per year
Get Best Price Contact Now

Detail Information
Name: Modular Nitrogen Gas Generators Purity: 90%~99.999%
Dew Point: -45℃ Or More Material: Stainless Steel Or Carbon Steel
Capacity: 2Nm3/hr~110Nm3/hr Pressure: Adjustable
Highlight:

Compressed Air Nitrogen Gas Generators

,

Pharmanceutical Nitrogen Gas Generators

,

CE Certified Nitrogen Gas Generators

Product Description

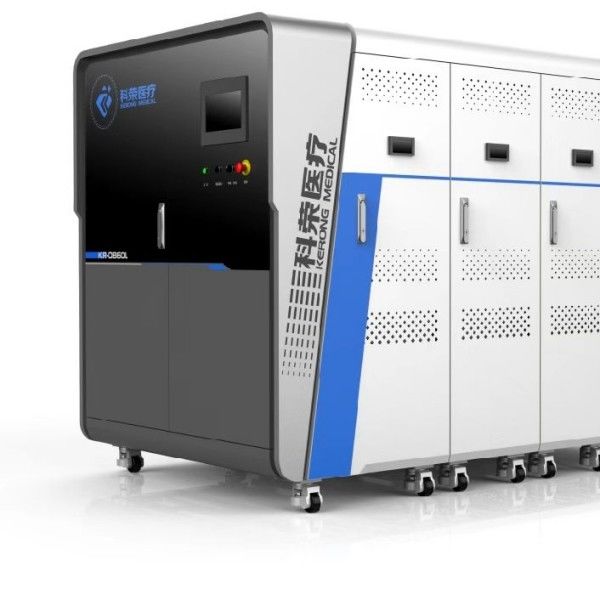

CE Certified Compressed Air Nitrogen Gas Generators For Pharmanceutical



Product description

Our CE Certified Compressed Air Nitrogen Gas Generators are specifically designed to meet the stringent demands of the pharmaceutical industry, delivering high-purity nitrogen directly from compressed air. Certified to meet European safety and quality standards, these generators ensure compliance, reliability, and operational excellence. Using advanced PSA or membrane technology, they provide nitrogen with purity levels up to 99.999% for critical applications like inerting, blanketing, and packaging. The compact, modular design allows easy integration into cleanroom environments, while eliminating reliance on bulk gas supply. With low maintenance needs and continuous, on-site generation, they offer a cost-effective, GMP-compliant solution for pharmaceutical manufacturing.



CE Certified Compressed Air Nitrogen Gas Generators For Pharmanceutical 0





Technical Parameters

Model Capacity (Nm3/hr) N2 purity(%) Air consumptin (m3/min) Air inlet requirements Electricity consumption Inlet / outlet pipe Diemension (mm) N.Weight
KRNAB-1 11.4 95 0.32 Air Inlet Temperature Range: 0℃~40℃;
Air inlet pressure range: 7~12barG;
Air inlet dew point: <+5°C;
Particles: <5 micron;
Oil: <3 mg/m3		 0.2KW/220V/230V/50Hz/60Hz G1/2, G1/2 700*700*2000 210
8.1 99
6.8 99.5
5.4 99.9
4.5 99.95
3.5 99.99
2.8 99.995
2 99.999
KRNAB-2 22.8 95 0.61 0.2KW/220V/230V/50Hz/60Hz G1/2, G1/2 900*700*2000 280
16.2 99
13.5 99.5
10.8 99.9
8.9 99.95
6.9 99.99
5.7 99.995
4.3 99.999
KRNAB-3 34.2 95 0.95 0.2KW/220V/230V/50Hz/60Hz G1/2, G1/2 1100*700*2000 350
24.3 99
20.3 99.5
16.2 99.9
13.4 99.95
10.5 99.99
8.8 99.995
7.1 99.999
KRNAB-4 45.6 95 1.35 0.2KW/220V/230V/50Hz/60Hz G3/4, G1/2 1300*700*2000 450
32.4 99
27 99.5
21.6 99.9
17.7 99.95
13.8 99.99
11.7 99.995
9.6 99.999
KRNAB-5 57 95 1.69 0.2KW/220V/230V/50Hz/60Hz G3/4, G1/2 1450*700*2000 500
40.5 99
32.4 99.5
26.6 99.9
20.8 99.95
17.2 99.99
14.6 99.995
12 99.999
KRNAB-6 68.4 95 2.14 0.2KW/220V/230V/50Hz/60Hz G3/4, G1/2 1650*700*2000 600
48.6 99
40.5 99.5
32.4 99.9
26.6 99.95
20.8 99.99
17.6 99.995
14.4 99.999
KRNAB-7 79.8 95 2.55 0.2KW/220V/230V/50Hz/60Hz G3/4, G1/2 1750*700*2000 700
56.7 99
47.3 99.5
37.8 99.9
31.1 99.95
24.3 99.99
20.6 99.995
16.8 99.999
KRNAB-8 91.3 95 2.75 0.2KW/220V/230V/50Hz/60Hz G1, G1/2 2000*700*2000 780
64.8 99
54 99.5
43.2 99.9
35.6 99.95
27.9 99.99
23.6 99.995
19.2 99.999
KRNAB-9 102.7 95 3.2 0.2KW/220V/230V/50Hz/60Hz G1, G1/2 2150*700*2000 900
72.9 99
60.8 99.5
48.6 99.9
39.7 99.95
30.7 99.99
26.2 99.995
21.6 99.999
KRNAB-10 114.1 95 3.67 0.2KW/220V/230V/50Hz/60Hz G1, G1/2 2250*700*2000 1000
81 99
67.5 99.5
54 99.9
44.3 99.95
34.5 99.99
29.3 99.995
23 99.999







Featured Function

Online monitoring of oxygen purity, pressure, flow rate and dew point.
Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
Air dryer and air filters automatic drainer discharge.
Automatic warning of spare parts replacement.
Remote control / fully automatic
Molecular sieve automatic compaction
Pneumatic valve switching by programmable controller automatic control

The IPC, DCS, the specific configuration of other specific programs





Factory Certificates

CE Certified Compressed Air Nitrogen Gas Generators For Pharmanceutical 1CE Certified Compressed Air Nitrogen Gas Generators For Pharmanceutical 2CE Certified Compressed Air Nitrogen Gas Generators For Pharmanceutical 3





FAQ

Q: Are you a factory or a trading company?

A:We are a factory over 20 years industrial experience.


Q: Do you offer OEM service?
A: Yes, we can customize it as your request.



Q: What is your lead time?
A: About 60~90 days after receiving deposit.



Q: What certificates do you have?
A: We have ASME, CE, ISO9001-2015, ISO13485 for medical oxygen generator. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc



Q: What about the warranty?
A: Beyond warranty period(For 12-Months against any manufacturing defect from the date equipment acceptance after commissioning or 18-months from the time of the delivery whichever comes first),supplier will provide spare parts, accessories, easily damaged parts via preferential price.



Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.





Q:Which port is near to you?
A: Qingdao port or Tianjin port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.



Q:Could you offer Origin Certification.
A: we can do as your request.
