Compressed Air Nitrogen Gas Generators Without Pressure Vessel

Compressed Air Nitrogen Gas Generators Without Pressure Vessel

Product Details:

Place of Origin: China
Brand Name: KERONG GAS
Certification: ISO9001, CE, ASME
Model Number: KRN

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 4 weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per year
Get Best Price Contact Now

Detail Information
Name: Modular Nitrogen Gas Generators Purity: 90%~99.999%
Dew Point: -45℃ Or More Material: Stainless Steel Or Carbon Steel
Capacity: 2Nm3/hr~110Nm3/hr Pressure: Adjustable
Highlight:

Compressed Air Nitrogen Gas Generators

,

Pressure Vessel Nitrogen Gas Generators

Product Description

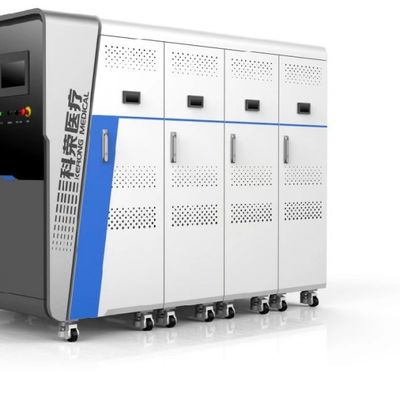

Compressed Air Nitrogen Gas Generators Without Pressure Vessel



Product description

Our Compressed Air Nitrogen Gas Generators Without Pressure Vessel offer a compact, efficient solution for industries requiring a steady supply of high-purity nitrogen. Designed to operate directly from compressed air systems, these generators eliminate the need for bulky pressure vessels, reducing footprint and installation complexity. Utilizing advanced membrane or PSA technology, they deliver nitrogen purity levels up to 99.999%, ideal for applications such as food packaging, electronics, and pharmaceuticals. With low maintenance requirements, energy-efficient performance, and modular design, these generators ensure reliable, on-site nitrogen production while enhancing safety and compliance with modern operational standards. A smart choice for space-conscious facilities.



Compressed Air Nitrogen Gas Generators Without Pressure Vessel 0





Technical Parameters

Model Capacity (Nm3/hr) N2 purity(%) Air consumptin (m3/min) Air inlet requirements Electricity consumption Inlet / outlet pipe Diemension (mm) N.Weight
KRNAB-1 11.4 95 0.32 Air Inlet Temperature Range: 0℃~40℃;
Air inlet pressure range: 7~12barG;
Air inlet dew point: <+5°C;
Particles: <5 micron;
Oil: <3 mg/m3		 0.2KW/220V/230V/50Hz/60Hz G1/2, G1/2 700*700*2000 210
8.1 99
6.8 99.5
5.4 99.9
4.5 99.95
3.5 99.99
2.8 99.995
2 99.999
KRNAB-2 22.8 95 0.61 0.2KW/220V/230V/50Hz/60Hz G1/2, G1/2 900*700*2000 280
16.2 99
13.5 99.5
10.8 99.9
8.9 99.95
6.9 99.99
5.7 99.995
4.3 99.999
KRNAB-3 34.2 95 0.95 0.2KW/220V/230V/50Hz/60Hz G1/2, G1/2 1100*700*2000 350
24.3 99
20.3 99.5
16.2 99.9
13.4 99.95
10.5 99.99
8.8 99.995
7.1 99.999
KRNAB-4 45.6 95 1.35 0.2KW/220V/230V/50Hz/60Hz G3/4, G1/2 1300*700*2000 450
32.4 99
27 99.5
21.6 99.9
17.7 99.95
13.8 99.99
11.7 99.995
9.6 99.999
KRNAB-5 57 95 1.69 0.2KW/220V/230V/50Hz/60Hz G3/4, G1/2 1450*700*2000 500
40.5 99
32.4 99.5
26.6 99.9
20.8 99.95
17.2 99.99
14.6 99.995
12 99.999
KRNAB-6 68.4 95 2.14 0.2KW/220V/230V/50Hz/60Hz G3/4, G1/2 1650*700*2000 600
48.6 99
40.5 99.5
32.4 99.9
26.6 99.95
20.8 99.99
17.6 99.995
14.4 99.999
KRNAB-7 79.8 95 2.55 0.2KW/220V/230V/50Hz/60Hz G3/4, G1/2 1750*700*2000 700
56.7 99
47.3 99.5
37.8 99.9
31.1 99.95
24.3 99.99
20.6 99.995
16.8 99.999
KRNAB-8 91.3 95 2.75 0.2KW/220V/230V/50Hz/60Hz G1, G1/2 2000*700*2000 780
64.8 99
54 99.5
43.2 99.9
35.6 99.95
27.9 99.99
23.6 99.995
19.2 99.999
KRNAB-9 102.7 95 3.2 0.2KW/220V/230V/50Hz/60Hz G1, G1/2 2150*700*2000 900
72.9 99
60.8 99.5
48.6 99.9
39.7 99.95
30.7 99.99
26.2 99.995
21.6 99.999
KRNAB-10 114.1 95 3.67 0.2KW/220V/230V/50Hz/60Hz G1, G1/2 2250*700*2000 1000
81 99
67.5 99.5
54 99.9
44.3 99.95
34.5 99.99
29.3 99.995
23 99.999







Featured Function

Online monitoring of oxygen purity, pressure, flow rate and dew point.
Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
Air dryer and air filters automatic drainer discharge.
Automatic warning of spare parts replacement.
Remote control / fully automatic
Molecular sieve automatic compaction
Pneumatic valve switching by programmable controller automatic control

The IPC, DCS, the specific configuration of other specific programs
