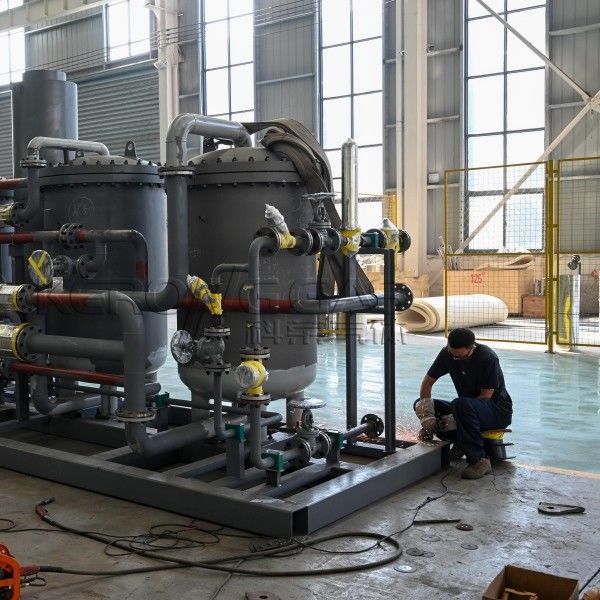

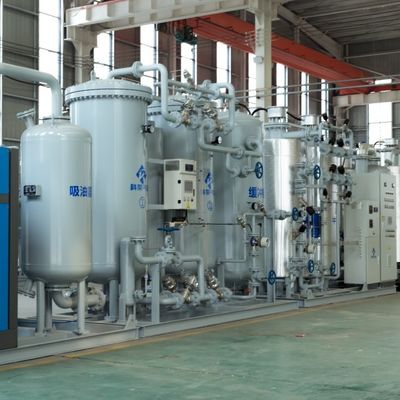

16 Bar Low Consumption Onsite Nitrogen Air Generator Plant For Laser Cutting
Product Details:
| Place of Origin: | China |
| Brand Name: | KERONG GAS |
| Certification: | ISO9001, CE, ASME |
| Model Number: | KRN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 8 weeks |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs per year |
|
Detail Information |
|||
| Name: | Nitrogen Air Generator | Purity: | 90%~99.9997% |
|---|---|---|---|
| Dew Point: | -45℃ Or More | Material: | Stainless Steel Or Carbon Steel |
| Capacity: | 5Nm3/hr~5500Nm3/hr | Pressure: | Adjustable |
| Highlight: | Onsite Nitrogen Air Generator Plant,16bar Nitrogen Air Generator Plant,Laser Cutting Nitrogen Air Generator Plant |
||
Product Description
16bar Low Consumption Onsite Nitrogen Air Generator Plant For Laser Cutting
Product description
The 16bar Low Consumption Onsite Nitrogen Air Generator Plant for Laser Cutting is designed to deliver an efficient and reliable nitrogen supply tailored for laser cutting processes. Operating at 16bar, this innovative system generates high-purity nitrogen directly from atmospheric air, minimizing energy usage while ensuring consistent performance. Its compact structure enables easy integration into existing production lines, reducing the need for external nitrogen sources and associated costs. By providing a stable nitrogen supply, this generator plant enhances the cutting quality and operational efficiency of laser systems, making it an excellent choice for businesses in the metal fabrication industry.
Technical Parameters
Capacity: 5-5500Nm³/h
Dew point :-45 ℃ or more
Purity :90%~99.9997%
| Model | Nitrogen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) | Net dimensions(mm) |
| KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
| 6 | 99.5 | 0.32 | ||
| 5 | 99.9 | 0.32 | ||
| 4 | 99.95 | 0.3 | ||
| 3 | 99.99 | 0.25 | ||
| 2 | 99.999 | 0.22 | ||
| KRN219 | 15 | 99 | 0.7 | 1200*600*1900 |
| 12 | 99.5 | 0.64 | ||
| 10 | 99.9 | 0.64 | ||
| 8 | 99.95 | 0.6 | ||
| 5 | 99.99 | 0.42 | ||
| 4 | 99.999 | 0.43 | ||
| KRN300.01 | 25 | 99 | 1.17 | 1600*800*1700 |
| 22 | 99.5 | 1.17 | ||
| 20 | 99.9 | 1.25 | ||
| 16 | 99.95 | 1.2 | ||
| 10 | 99.99 | 0.83 | ||
| 6 | 99.999 | 0.65 | ||
| KRN300.02 | 40 | 99 | 1.87 | 1600*800*2200 |
| 33 | 99.5 | 1.76 | ||
| 25 | 99.9 | 1.58 | ||
| 20 | 99.95 | 1.5 | ||
| 15 | 99.99 | 1.25 | ||
| 10 | 99.999 | 1.09 | ||
| KRN400.01 | 50 | 99 | 2.4 | 2000*900*1800 |
| 45 | 99.5 | 2.4 | ||
| 40 | 99.9 | 2.4 | ||
| 30 | 99.95 | 2.25 | ||
| 20 | 99.99 | 1.67 | ||
| 15 | 99.999 | 1.63 | ||
| KRN400.02 | 80 | 99 | 3.73 | 2000*900*2300 |
| 70 | 99.5 | 3.73 | ||
| 60 | 99.9 | 3.8 | ||
| 50 | 99.95 | 3.75 | ||
| 30 | 99.99 | 2.5 | ||
| 20 | 99.999 | 2.17 | ||
| KRN500.01 | 100 | 99 | 4.67 | 2400*1000*2250 |
| 90 | 99.5 | 4.8 | ||
| 70 | 99.9 | 4.44 | ||
| 55 | 99.95 | 4.13 | ||
| 40 | 99.99 | 3.33 | ||
| 30 | 99.999 | 3.25 | ||
| KRN500.02 | 132 | 99 | 6.2 | 2400*1000*2400 |
| 110 | 99.5 | 5.9 | ||
| 90 | 99.9 | 5.7 | ||
| 70 | 99.95 | 5.3 | ||
| 50 | 99.99 | 4.2 | ||
| 40 | 99.999 | 4.3 | ||
| KRN600.01 | 150 | 99 | 7 | 3100*1200*2400 |
| 130 | 99.5 | 6.9 | ||
| 110 | 99.9 | 6.9 | ||
| 90 | 99.95 | 6.8 | ||
| 60 | 99.99 | 5 | ||
| 50 | 99.999 | 5.4 | ||
| KRN600.02 | 180 | 99 | 8.4 | 3100*1200*2400 |
| 150 | 99.5 | 8 | ||
| 130 | 99.9 | 8.2 | ||
| 110 | 99.95 | 8.2 | ||
| 80 | 99.99 | 6.7 | ||
| 60 | 99.999 | 6.5 | ||
| KRN700.01 | 250 | 99 | 11.7 | 3200*1400*2650 |
| 220 | 99.5 | 11.7 | ||
| 190 | 99.9 | 12 | ||
| 160 | 99.95 | 12 | ||
| 100 | 99.99 | 8.33 | ||
| 80 | 99.999 | 8.67 | ||
| KRN700.02 | 300 | 99 | 14 | 3200*1400*2800 |
| 260 | 99.5 | 13.8 | ||
| 220 | 99.9 | 13.9 | ||
| 180 | 99.95 | 13.5 | ||
| 120 | 99.99 | 10 | ||
| 100 | 99.999 | 10.8 | ||
| KRN800.01 | 350 | 99 | 16.33 | 3300*1600*2650 |
| 300 | 99.5 | 16 | ||
| 250 | 99.9 | 15.8 | ||
| 210 | 99.95 | 15.8 | ||
| 150 | 99.99 | 12.5 | ||
| 120 | 99.999 | 13 | ||
| KRN800.02 | 400 | 99 | 18.6 | 3300*1600*3000 |
| 360 | 99.5 | 19.2 | ||
| 300 | 99.9 | 19 | ||
| 250 | 99.95 | 18.75 | ||
| 180 | 99.99 | 15 | ||
| 140 | 99.999 | 15.2 | ||
| KRN900 | 500 | 99 | 23.3 | 4600*1900*3050 |
| 400 | 99.5 | 21.3 | ||
| 360 | 99.9 | 22.8 | ||
| 300 | 99.95 | 22.5 | ||
| 200 | 99.99 | 16.67 | ||
| 160 | 99.999 | 17.33 | ||
| WN1000.01 | 600 | 99 | 28 | 4600*2000*3050 |
| 500 | 99.5 | 26.7 | ||
| 420 | 99.9 | 26.6 | ||
| 350 | 99.95 | 26.25 | ||
| 250 | 99.99 | 20.83 | ||
| 200 | 99.999 | 21.7 | ||
| KRN1000.02 | 720 | 99 | 33.6 | 4600*2000*3350 |
| 600 | 99.5 | 32 | ||
| 500 | 99.9 | 31.6 | ||
| 420 | 99.95 | 31.5 | ||
| 300 | 99.99 | 25 | ||
| 250 | 99.999 | 27 | ||
| KRN1100 | 880 | 99 | 41 | 4800*2200*3350 |
| 720 | 99.5 | 38.4 | ||
| 600 | 99.9 | 38 | ||
| 500 | 99.95 | 37.5 | ||
| 350 | 99.99 | 29.2 | ||
| 300 | 99.999 | 32.5 | ||
| KRN1200 | 1000 | 99 | 50 | 5000*2200*3460 |
| 860 | 99.5 | 45.8 | ||
| 720 | 99.9 | 45.6 | ||
| 600 | 99.95 | 45 | ||
| 400 | 99.99 | 40 | ||
| 350 | 99.999 | 43.8 | ||
| KRN1300 | 1200 | 99 | 56 | 5200*2200*3650 |
| 1000 | 99.5 | 53.3 | ||
| 860 | 99.9 | 54.5 | ||
| 660 | 99.95 | 49.5 | ||
| 450 | 99.99 | 37.5 | ||
| 400 | 99.999 | 43.3 | ||
| KRN1400 | 1400 | 99 | 65 | 5400*2200*3750 |
| 1200 | 99.5 | 64 | ||
| 1000 | 99.9 | 63.3 | ||
| 800 | 99.95 | 60 | ||
| 500 | 99.99 | 41.7 | ||
| 450 | 99.999 | 48.75 | ||
| KRN1500.01 | 1500 | 99 | 70 | 5600*2200*3850 |
| 1300 | 99.5 | 69 | ||
| 1100 | 99.9 | 69 | ||
| 900 | 99.95 | 67.5 | ||
| 600 | 99.99 | 50 | ||
| 500 | 99.999 | 54 | ||
| KRN1500.02 | 2000 | 99 | 93.3 | 5600*2200*4500 |
| 1700 | 99.5 | 90 | ||
| 1400 | 99.9 | 88 | ||
| 1100 | 99.95 | 82.5 | ||
| 700 | 99.99 | 58.3 | ||
| 550 | 99.999 | 59.6 |
Featured Function
Online monitoring of oxygen purity, pressure, flow rate and dew point.
Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
Air dryer and air filters automatic drainer discharge.
Automatic warning of spare parts replacement.
Remote control / fully automatic
Molecular sieve automatic compaction
Pneumatic valve switching by programmable controller automatic control
The IPC, DCS, the specific configuration of other specific programs
Factory Certificates
FAQ
Q: Are you a factory or a trading company?
A:We are a factory over 20 years industrial experience.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 60~90 days after receiving deposit.
Q: What certificates do you have?
A: We have ASME, CE, ISO9001-2015, ISO13485 for medical oxygen generator. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: Beyond warranty period(For 12-Months against any manufacturing defect from the date equipment acceptance after commissioning or 18-months from the time of the delivery whichever comes first),supplier will provide spare parts, accessories, easily damaged parts via preferential price.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:Which port is near to you?
A: Qingdao port or Tianjin port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: we can do as your request.
